Cutting through the noise

Cutting through the noise

Posted on July 20, 2022 0 Comments

Regardless of where you work in IT you’ll be familiar with the problem of alert fatigue and dealing with the endless streams of telemetry, alerts and notifications. While it’s often the background to daily tasks this is never more visible than when dealing with a time sensitive incident such as a critical outage or a security breach. In this post we’re going to look at how Flowmon Anomaly Detection System (ADS) can help you quickly and accurately identify essential details of a security breach that cuts through the noise and allows you to respond to the incident and mitigate the root cause with confidence.

Why your IT Infrastructure Monitoring Isn’t Enough

IT Infrastructure Monitoring (ITIM) tools like Progress’s own What’s Up Gold are the backbone of any IT Operations monitoring strategy. However, these tools are primarily focused on general purpose visibility across a wide range of infrastructure and systems with an emphasis on operational availability and performance. When it comes to modern day attacks they can often show there’s a problem but don’t have the insight into the nature of the threat and the root cause that will allow you to respond.

Let’s imagine a scenario where you’re experiencing a Denial of Service (DoS) attack using a SYN flooding technique. This is a relatively low volume attack that may not even trigger your network utilisation alarms and is often used to obfuscate more target and dangerous attacks.

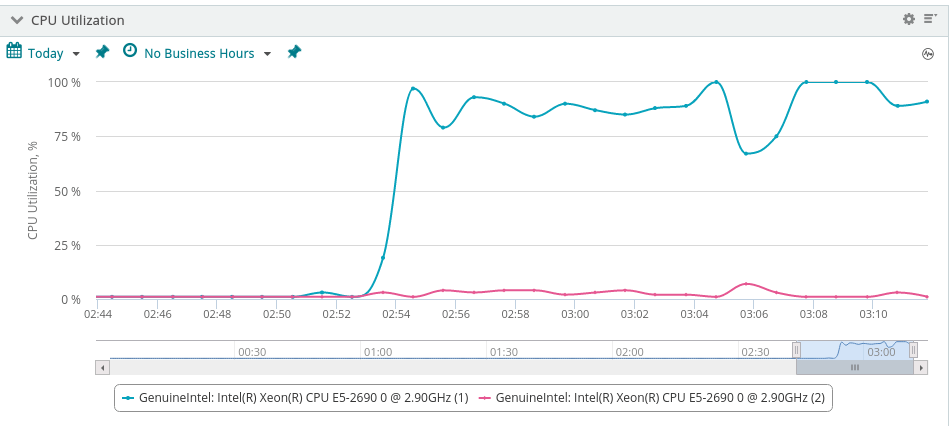

Below we can see how this attack appears using basic server performance telemetry. We have a warning for a single CPU core on one of the servers but in general this doesn’t look like very threatening or in danger of impacting user experience. Depending on other priorities and the organisational processes we may choose to just monitor this and wait to see if it escalates before we take any action.

Figure1: High Utilisation of a Single CPU Core

How Flowmon ADS Helps

Flowmon ADS implements multiple techniques and methods to detect threats using network telemetry and is an example of Network Detection & Response (NDR) technology. As an attacker attempts to scan for and exploit vulnerabilities in your systems as well as access and exfiltrate data all of it shows up on the wire at some stage. Flowmon ADS gives you detailed insight into every action an intruder takes.

When we look at the same DoS incident from the perspective of Flowmon ADS we can easily trace our way from a top-level even down to details attack and root cause information.

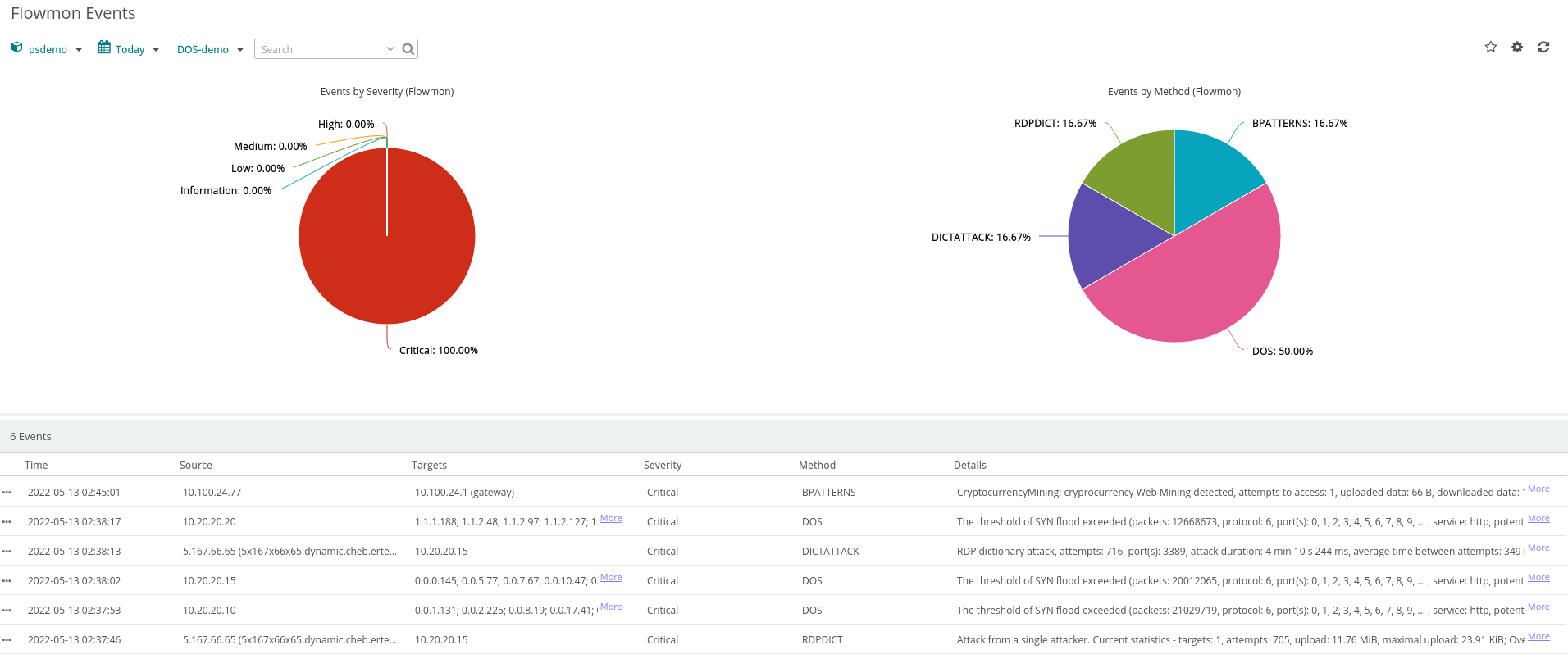

Using the built-in Flowmon integration with What’s Up Gold we can easily see a security event summary dashboard to alert us that there’s more going on than just the DoS attack.

Figure 2: Flowmon ADS Integrated Events Dashboard in What’s Up Gold

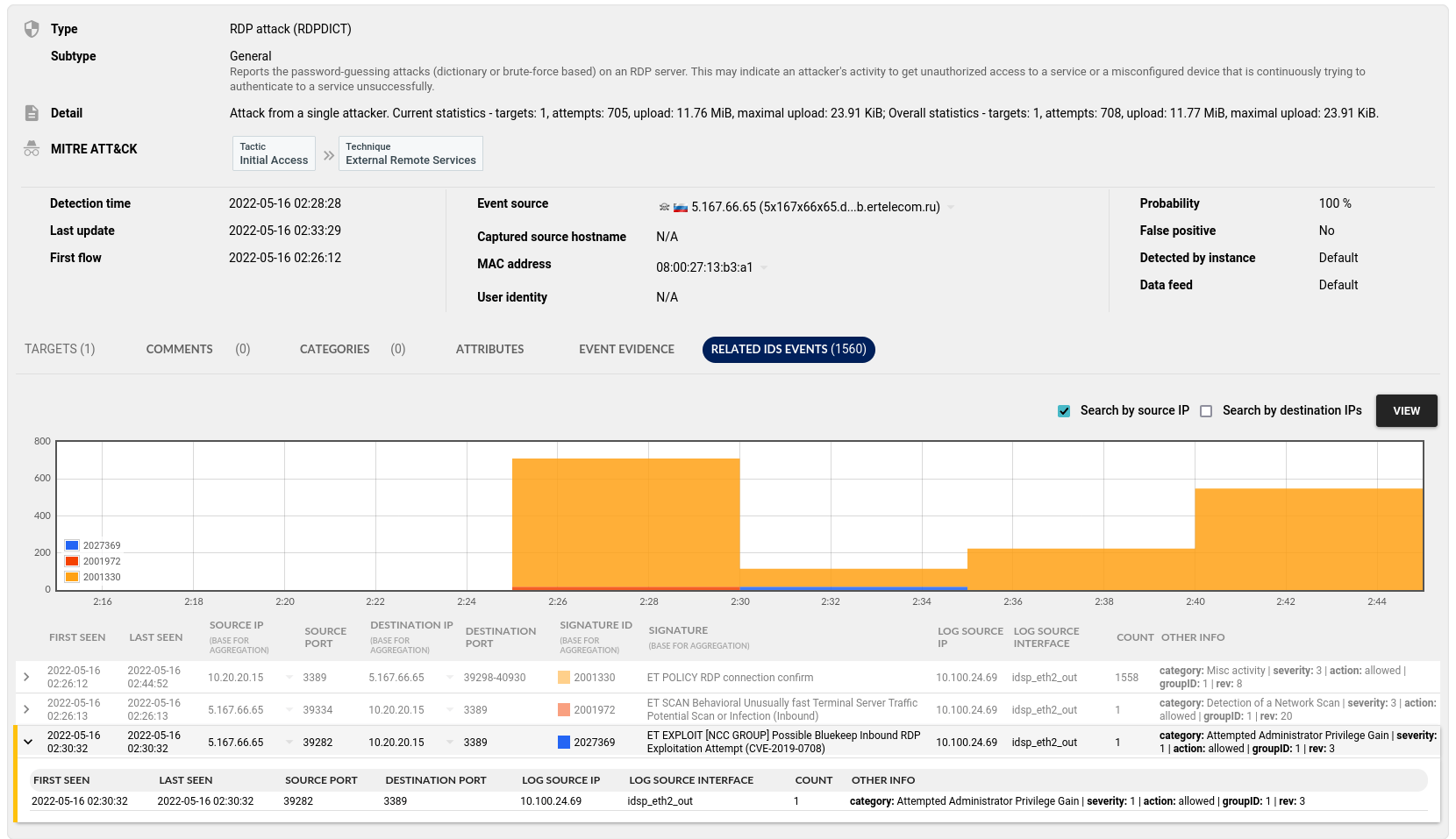

From here we can immediately jump to the Flowmon ADS console to see more detailed information such as exploit and vulnerability details. The first important detail is the identification of the Bluekeep RDP vulnerability as the original entry point on to the server by the attacker. This attack was launched under the cover of the DoS attack, hoping it would distract us and hide the more targeted exploit. This is the root cause we need to mitigate by ensuring all our servers are properly patched.

Figure 3: Bluekeep Vulnerability Event Details

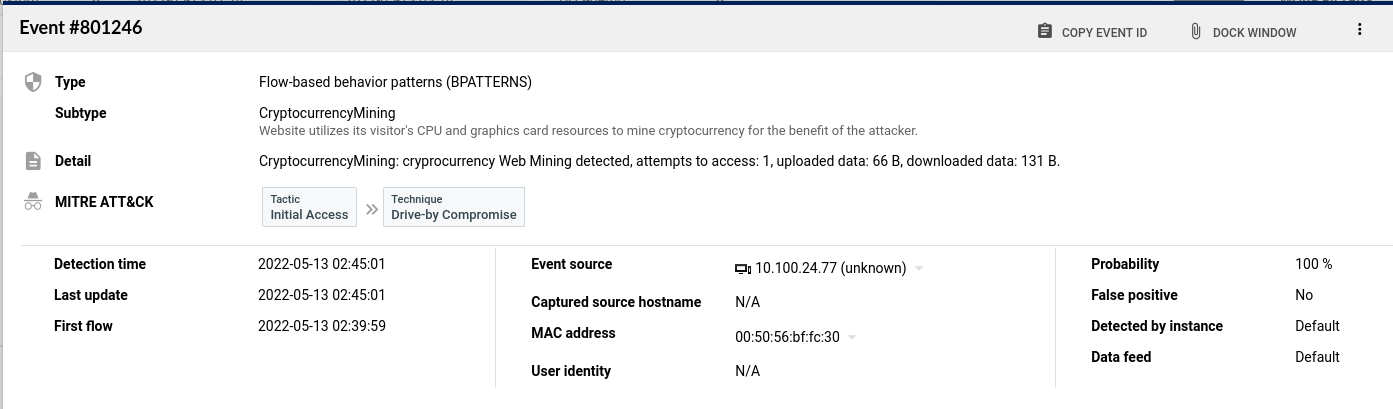

Next we inspect a related event from the web server experiencing increased load on one of it's CPU cores. It would be easy to dismiss this CPU load as a result of the DoS traffic however we can now see it’s the result of a crypto-currency mining program being run by the attacker. While the impact of this is largely financial (increase resource consumption, etc) the attacker has gained full administrative access to our server in order to plant this program. Much worse could be yet to come.

Figure 4: Cryptocurrency Mining Event

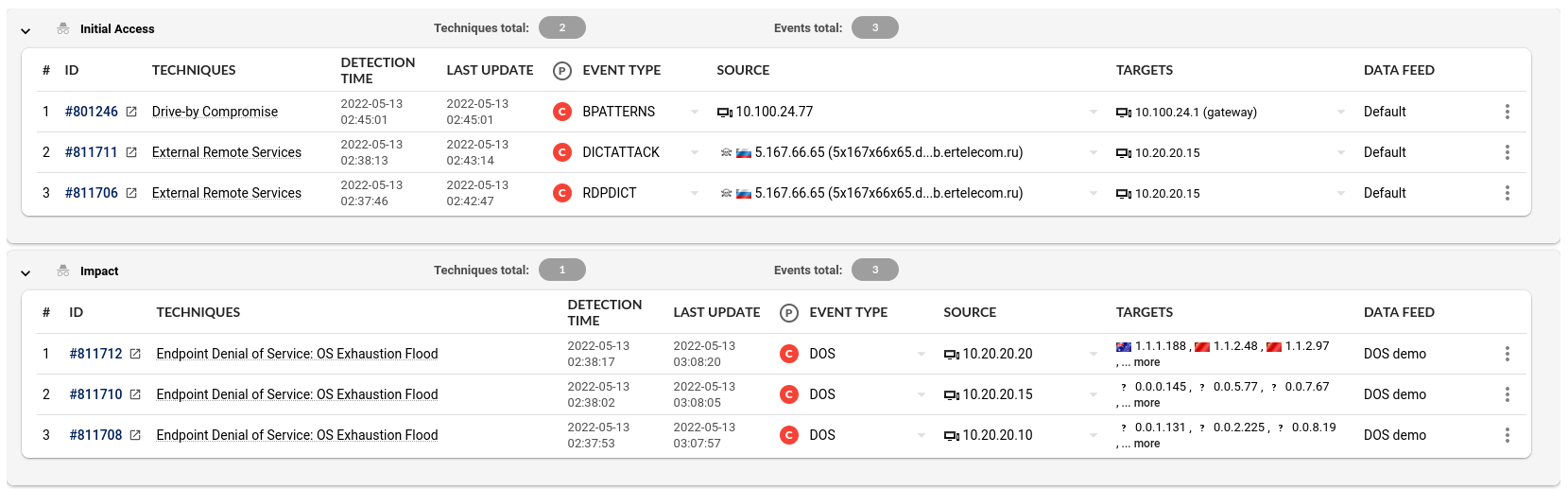

Finally we can see the whole incident in the context of the MITRE framework and how each of the various events from DoS to Bluekeep Exploit to Cryptocurrency Mining are tied together as progressive steps in a single attack.

Summary

ITIM tools like What’s Up Gold offer critical visibility and insight into the general availability and performance of your IT systems however when it comes to detailed insight into critical security events they can often fall short.

Flowmon ADS offers the necessary insights and details to quickly and confidently respond to complex modern security incidents. Combined with What’s Up Gold it can provided essential security insights alongside your existing IT operations dashboards which simplifies your workflow and speeds up time to resolution.

Benjamin Hodge

View all posts from Benjamin Hodge on the Progress blog. Connect with us about all things application development and deployment, data integration and digital business.
