Keep Employees Informed about COVID-19 with a Chatbot: Part 2

With Progress NativeChat, our AI-powered chatbot, you don’t need to be a developer to create a chatbot capable of answering all questions your employees might have.

This article is a follow up article for Keep Employees Informed About COVID-19 with a Chatbot: Part 1. In that post, we built the basics of a chatbot that could answer a number of questions from employees related to COVID-19. In this post, we'll take the chatbot to the next level by learning to manage Q&A categories and about how displaying lists of questions work.

It is important that you go through the first article before you continue with Part 2. Once you've reviewed that, let's proceed.

Overview

The COVID-19 Chatbot we began building in Part 1 comes with an interesting feature, which allows the users to type:

• Covid Questions
• Travel Questions
• Finance Questions
• Meetings Questions
• WFH Questions

Each expression will result in displaying a set of available interactive questions for that category. For example:

The Purpose

The purpose of this article is to:

• Explain where the text for each button in a list of questions comes from
• Teach you how to add remove an unwanted Q&A category
• Teach you how to add a new Q&A category
• Teach you how to add conversation helpers, to display a list of questions in that category

List of Questions Explanation

When you say, "I have a finance question," the chatbot will respond with a list of buttons with for each available finance question.

You are probably wondering how the chatbot knows what text to display for each item.

If you open the FinanceQnA category, you will see a list of Q&As. The first question for each Q&A is the text used to display the available questions to the user.

Removing a Q&A Category

You may choose not to use one of the Q&A categories provided by the COVID-19 Chatbot.

If this is the case for you, you can do that in the following simple steps:

Step 1 — remove the unwanted category

First, you need to remove the unwanted category and all its Q&As.

Go to the Question Answering page.

Then press the trash can next to the category that you want to remove.

Step 2 — remove the conversation trigger

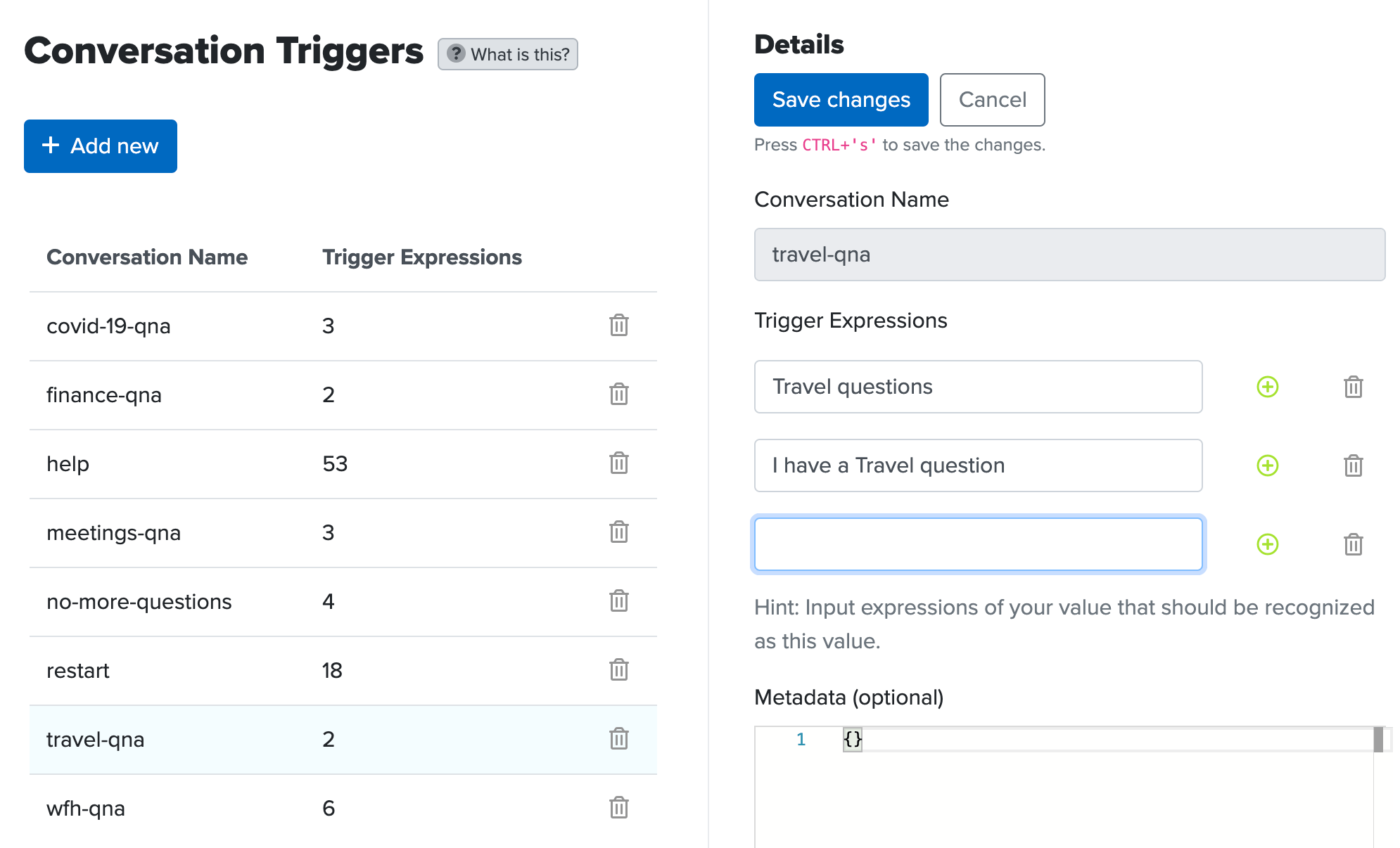

Navigate to the Conversation Triggers tab

Here, you need to remove the Conversatoin Trigger that shows a list of available questions for the category that you are removing.

Note: Conversation Trigger is a set of expressions that starts a conversation.

For example travel-qna shows a list of travel questions, when you say something like:

• Travel questions
• I have a travel question

Locate the conversation trigger that is no longer needed, and delete it by clicking the trash icon next to it.

Step 3 — Test

You can try to ask questions that belonged to the removed category.

Additionally, you could ask to show a list of questions for that category.

In both cases, the chatbot should respond with, "Ask me anything" and a hint.

Adding a New Question and Answers Category

If you want to add more questions and answers, but you feel like they don't fit any of the categories provided, you can add a new category.

For example let's add a category for general questions.

Step 1 — Create a new category

Navigate to the Question Answering page, and press the + Add a category button.

Set the category name to GeneralQnA. Like this:

Press the Create category button.

Note: The QnA at the end it not required, however, it is nice to have consistent naming that makes it clear what you are looking at. For any new category that you create, it is best to use this format: NameQnA

Step 2 — Add your own Q&As

Now you just need to add your own questions to the general category.

Let's add one to answer questions about plants in the office.

Press the + Add a question button.

Add these questions:

• Office plants
• Watering office plants
• Who is watering the office plants?
• Are the plants in the office OK?

Set category name:

• Office plants

Answer:

• The facilities team is looking after our beloved plants.

The new Q&A should look like this:

Finally, save the changes by pressing the Save changes button.

Step 3 — test the new question

Now, you can test the new Q&A by saying:

• Is anyone watering the plants?

Your chatbot should respond with:

Bonus—Display a List of Questions for the New Category

When you add a new category for Q&As, you will notice that when you ask "General Questions," the chatbot doesn't give you a list of available questions for that category.

This is because we have to instruct the chatbot how to do that and what to display.

This section is a bit more advanced. However, if you carefully follow the steps below, you should be fine to do it. 😇

Add Conversation Code

First, we need to add the code for a conversation that will display a list of available questions.

Don't worry, you will be given the code you need, and you will just need to make a few tiny modifications.

Note: If you get lost at any point of this section, at the end of this set of instructions, there is a video-recording showing how to complete this task.

Step 1 — go to the Cognitive Flow page

Click on the Cognitive Flow tab, which will take you to the Cognitive Flow page.

Note: Cognitive Flow is how we tell our chatbot how to handle various conversations.

Step 2 — Find the last conversation (wfh-qna)

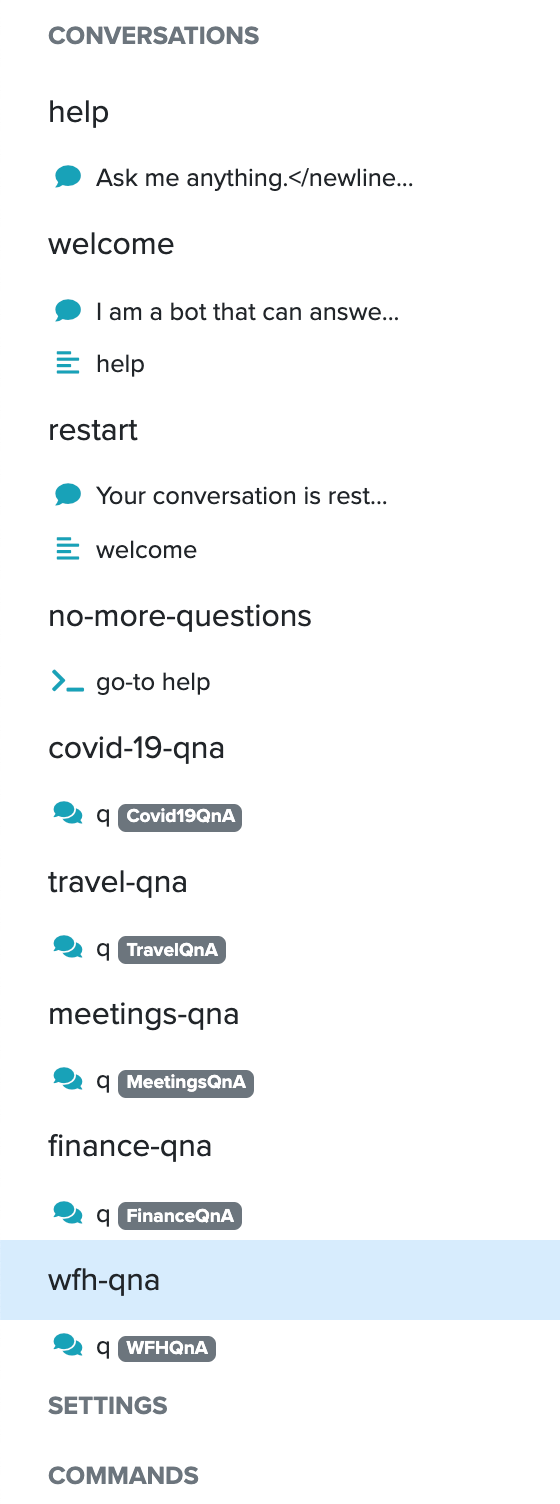

On the left hand side, there is a panel that lists all conversations in this chatbot project. Find the last one before Settings—it should be wfh-qna—and click on it.



This will take you to wfh-qna conversation code.

Here you should notice the two higlighted curly brackets { } .

Step 3 — Add a new conversation code

Click on the right hand side of the highlighted closing curly bracket (should be at line 156).

Then copy and paste the following code in there.

,"name-qna": {
  "type": "goal",
  "steps": [
    {
      "type": "question",
      "entity": "q",
      "entity-type": "NameQnA",
      "messages": [
        [
          "Check the Name answers for:",
          "Hint: To stop repeating questions, say: \"no more questions\" "
        ]
      ],
      "display": {
        "type": "quick-reply"
      }
    }
  ]
}

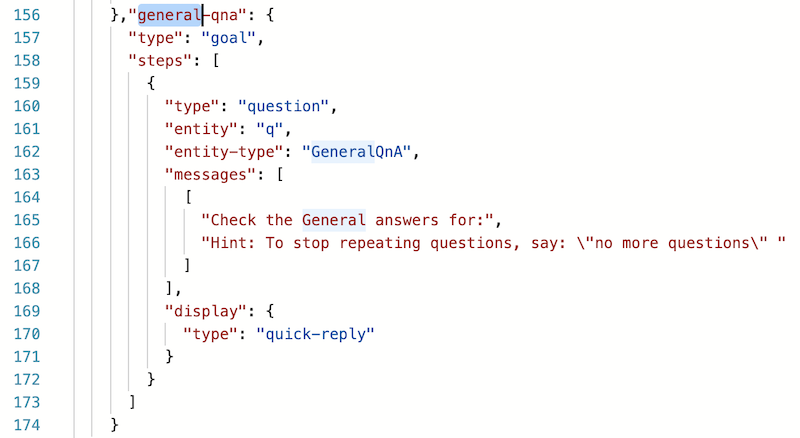

Next, we need to change the three mentions of the word name to the name of the category you want to add. In the case of this example, we are replacing name with general, like this:



It is worth explaining each of the items that you had to update:

• "general-qna" — is the name of this conversation. This is used when you need to add a Conversation Trigger for this Conversation. Take note of it, as we will need it in the next step.
• "entity-type": "GeneralQnA" — tells the chatbot where to get all the Q&A questions to display to the user. It is important to know that this has to match exactly the name you gave to your Q&A category (in the Question Answering page).
• "Check the General answers for:" — provides the chatbot with a text to display to the user, so feel free to adjust it to your needs.

Step 4 — Save

Press the save button, and we should be good to go.

Video Recap

Here is a video of how to complete this whole task:

Your browser does not support the video tag.

Add Conversation Trigger

The final piece of the puzzle 🧩 is to tell the chatbot when to trigger our new general-qna conversation.

This is done from the Conversation Triggers page.

Step 1 — Go to Conversation Triggers page

Click on the Training tab and then click on Conversation Triggers.

Step 2 — Add a new conversation trigger

Click on the + Add new button.

Then set the Conversation Name to:

• general-qna

Note: It is important that the conversation name in here matches exactly to the name you provide in the Cognitive Flow page.

Trigger Expressions:

• General Questions
• I have a general question

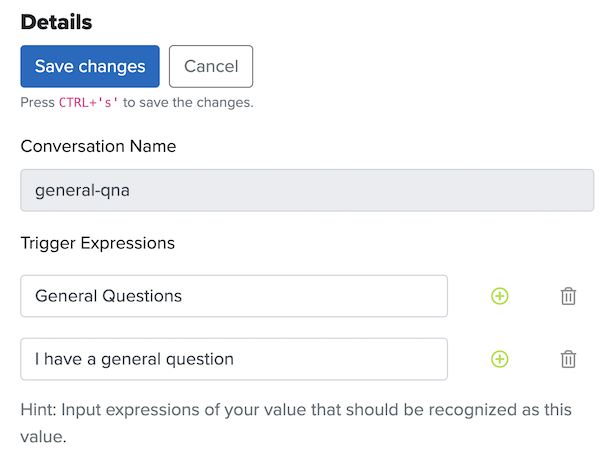

The new trigger should look like this:

Step 3 — Save

Save the new trigger by pressing the Save changes button.

Step 4 — Test

Finally, you should be able to test the new conversation in action, by saying

• I have a general question

Your chatbot should respond with:

Final Word

Congratulations! 🎉🥳

Publishing
