Create a simple image selector (5.4 or older)

This topic will show how you can select a simple image selector control, which uses a client binder to retrieve images from the Sitefinity CMS Images module. You can download the source code from here.

As you know, Sitefinity CMS has an extensive For developers: RESTful WCF services in Sitefinity, which you can use to create, display, update or delete all kinds of content managed by the CMS. We’re going to use these web services in our example to get a list of images and display them to the user.

Since writing the client-side code to invoke a web service and work with its response can be quite cumbersome, we’ve included a set of built-in controls, called Client Binders, that make your job much easier. A client binder is essentially a custom control used to call a web service and display the result in another custom control). We have implemented binders for most RadControls used in Sitefinity CMS that you can use out of the box – RadGridBinder, RadTreeViewBinder, RadListViewBinder, GenericCollectionBinder. You can find more information about client binders For developers: Client binder controls.

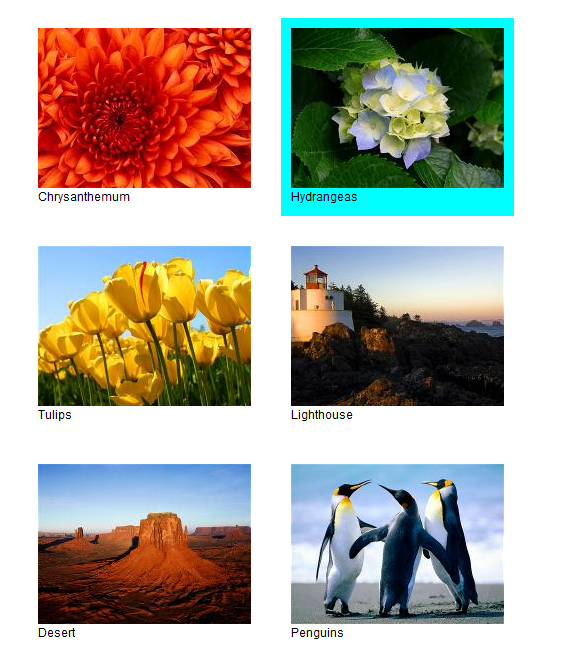

In our example, we are going to use a GenericCollectionBinder working with the Sitefinity CMS image service, since the markup we’re outputting will be custom and we’re not using RadGrid or RadTreeView. Here’s how the end result is going to look like:

The role of this control is to display a list of images available in Sitefinity CMS, and return the URL of the image that the user clicked. We can later use this URL in whatever way we find appropriate (we’re going to cover that in the next blog post).

In the template for our image selector, we have two controls – a GenericCollectionBinder, and an HTML server control representing an unordered list of images:

There are several properties we need to set on the binder - the URL of the service we are using, the ID of the target control displaying the result, the name of the data item property serving as a key, and a list of the properties we are using. As you can see, we also have a BinderContainer. You can think of it as the item template, or markup that will be rendered for each item returned by the service. In our case, we render a thumbnail, and the name of each image. The things in the curly brackets are actually placeholders. When binding, the binder will replace them with the corresponding value of the given properties. This acts like the Eval() function in ASP.NET, but performs its magic on the client.

Server Control

The SimpleImageSelector class inherits from SimpleScriptView. This is a widely used Sitefinity CMS class which providers the basis of all script controls (using both server and client functionality). It also provides a container, through which we can access all controls we place in the template. It is recommended that you inherit from it when writing your custom controls. Our server-side code for the image selector does 3 things:

1. Specify the template we are using (by overriding the LayoutTemplatePath property):
   public override string LayoutTemplatePath

   {

       get

       {

           return "~/SimpleImageField/SimpleImageField.ascx";

       }

       set

       {

           base.LayoutTemplatePath = value;

       }

   }
2. Include a custom stylesheet (to signify the selected images after the user clicks them):
   protected override void OnInit(EventArgs e)

   {

       base.OnInit(e);

       HtmlLink link = new HtmlLink();

       link.Attributes.Add("href", VirtualPathUtility.ToAppRelative("~/ImageSelector/SimpleImageSelector.css"));

       link.Attributes.Add("type", "text/css");

       link.Attributes.Add("rel", "stylesheet");

       this.Page.Header.Controls.Add(link);

   }
3. Provide a reference to the corresponding client-side component (overriding GetScriptReferences and GetScriptResources).

Client Control

We're building a very simple image selector, so there's only two things it does:

1. Tell the binder to invoke the service and display the result (make sure you have uploaded at least one image).
   _onLoad: function (sender, args) {

       this.get_binder().add_onItemCommand(this._binderCommandDelegate);

       this.get_binder().DataBind();

   },
2. After a user clicks a particular image, mark it and save its URL
   _binderCommand: function (sender, args) {

       if (args.get_commandName() == "selectImage") {

           var imageUrl = args.get_dataItem().MediaUrl;

           this.set_selectedImageUrl(imageUrl);

           // remove class from previously selected images

           var selected = jQuery(args.get_itemElement().parentNode).find("div.sf_selectedImage").each(function (index, element) {

               jQuery(element).removeClass("sf_selectedImage");

           });

           // set class to currently selected image

           jQuery(args.get_itemElement()).addClass("sf_selectedImage");

       }

   },

A particularly interesting feature we've used in this case are binder commands. We can instruct all client binders to fire a command with a particular name, by specifying a special class in our markup. In our case we have the following on the <a> tag:

When the binder sees this, it knows that when the <a> tag is clicked, it has to fire a command with the name "selectImage". It is also kind enough to pass us all the information for the particular item that we need. We then handle the command, and update our selected URL. With this, the role of our simple image selector is done.
